Overview

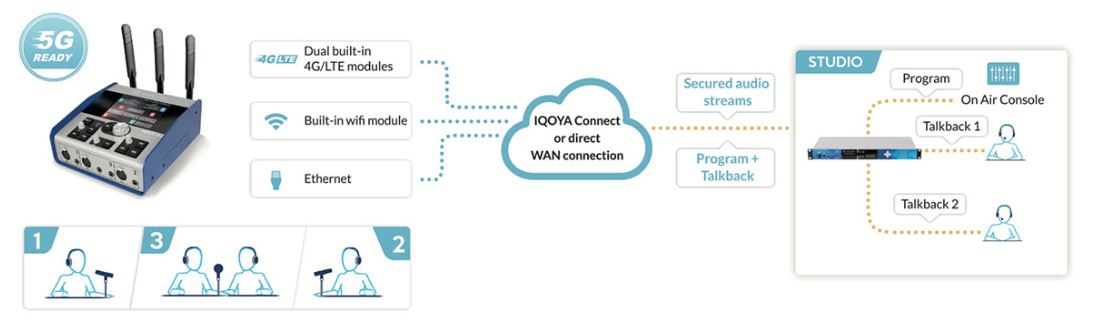

IQOYA TALK is a portable IP audio codec dedicated to live remote broadcasting for Radio and TV. It is used for remote live operations requiring high reliability transmission & broadcast audio quality, such as;

• Interviews
• Events
• Sports Commentaries
• Talk shows

IQOYA TALK offers;

• Simple configuration by predefined scenarios in the studio
• Large number of built-in connectivities: 2 Ethernet, WiFi, 2x 3G/LTE/4G
• Up to 8H autonomy achieved by two independent batteries
• Quick access to all relevant on-field settings

Features

Audio

• 3 Mic inputs, Microphone / Line level adjustment. 48 V phantom power
• 1 analog or AES/EBU stereo input Line level
• 4 headphone outputs, individual mix bus on each output
• 2 Talkback channels for users 1 and 2 and 1 mono or stereo program on independent IP connections
• 11 input / 10 output embedded mixer

• 2 Gigabit Ethernet ports for EBU/ACIP and AES67audio streams
• 1 integrated dual band wifi / bluetooth module
• 2 integrated 4G / LTE modules, approved in Europe, USA and Asia
• 3 GPIOs controllable by GUI
• 2 USB A ports for files 1 USB C port for streaming audio to PC

• 2 independent SIP connections for 1 mono or stereo program and 2 talkbacks
• Encoding : G711/G722, MPEG-1/2 Layer II MPEG-4 AAC-LC, AAC-LD/ELD, HE-AACv1/v2, Opus
• Dual streaming / Configurable FEC
• Redundancy of audio streams on available IP networks (Ethernet, WiFi, 4G / LTE, 3G)
• Compliant with ACIP (EBU Tech 3326 and Tech 3368)

• Lockable external power supply 12-24 V DC
• LxWxH: 200 x 216 x 90 mm (77⁄8 x 81⁄2 x 335⁄ 64)
• Up to 12H autonomy with 2 internal hot-swappable batteries (2 Li-ion packs, 6.4 A.h)
• Weight : 2,3 Kg (5 lb) incl. 1 battery
• Operating temperature 0-45 ° C
